DOIO KB30-01 Macro Keyboard 30 Keys + 3 Knob Macro Pad
Note: DOIO KB30-01 Macro Keyboard comes without keycaps.
Triple Knob Macro Pad

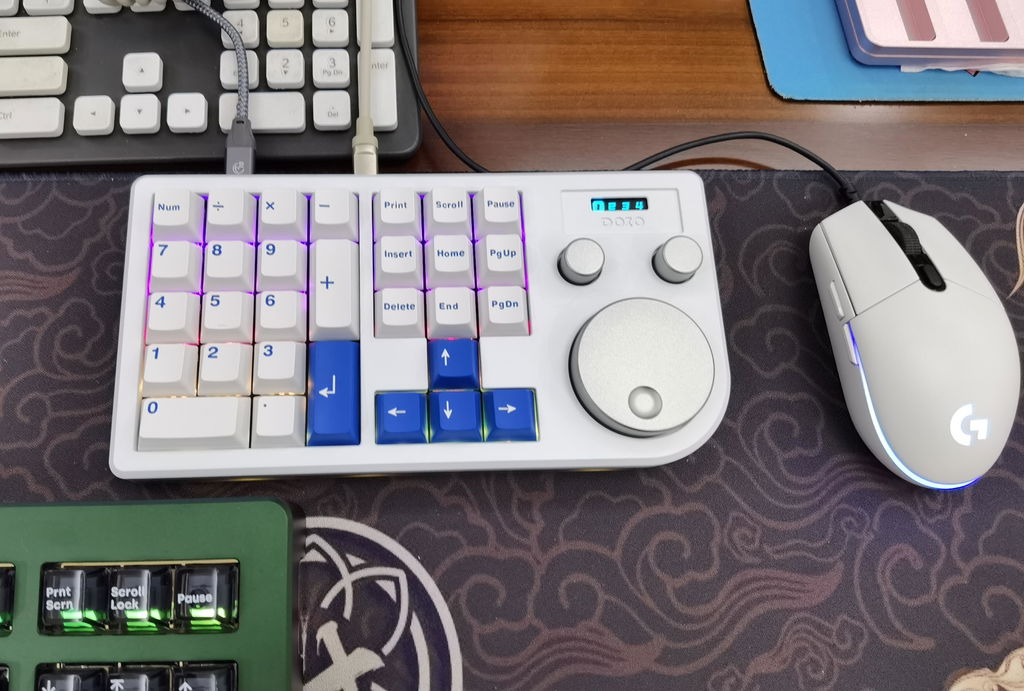

A control deck with three dedicated knobs to triple your control. This little console adds an immense amount of customizable functionality to any keyboard setup with three dedicated, clickable knobs (one giant and two smaller).
Support VIA Programmable
All of this is VIA programmable with 4 distinct function layers so you can get extra specific about what signals you’re sending.
Aluminum Acrylic Case with OLED display
The form and design on this macro pad are also on point with a solid 6063 anodized aluminum build in multiple colors, RGB backlighting for some extra brilliance, and even a small on-board display to keep your layers straight.
Hot-swappable Sockets

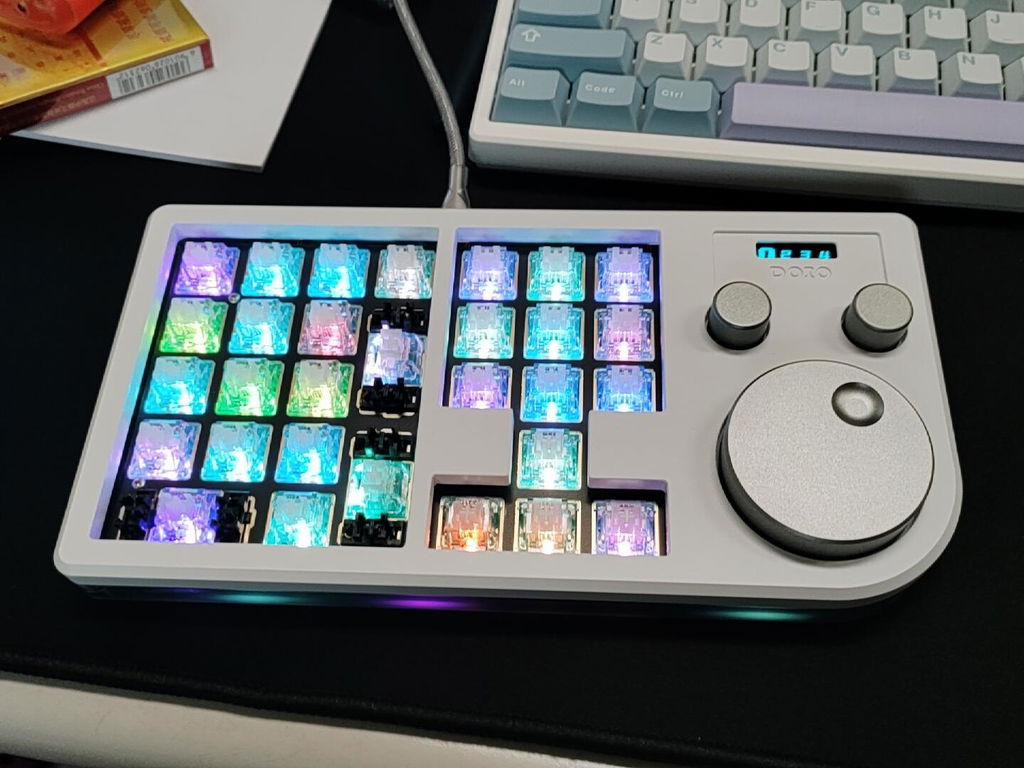

There are also 30 traditional hot-swappable mechanical switch sockets for more classic macro functions. It is compatible with most 3-pin and 5-pin mechanical switches, such as Cherry, Gateron, Otemu, Kailh and other MX switches and their clones.
| General |
Brand: DOIO Type: Mechanical Keyboard Model: KB30-01 |
| Specification |
Keyboard Layout: 30 keys + 3 knobs Programmable: VIA (Up to 4 layers) Keycaps Profile: OEM Switches: OUTEMU Ocean Silent Linear Material: 6063 Anodized Aluminum + Translucent Acrylic Base Knobs Material: CNC Aluminum Connectivity: USB-C Wired PCB: Hot-swappable Screen: 0.91-inch OLED Screen Backlighting: RGB |
| Weight & Size |
Product Weight: 0.49kg Package Weight: 0.66kg Product Size(L x W x H): 21.7x11.3x3.6cm |
| Package Contents |
1 x DOIO KB30-01 Keyboard Kit 30 x Switches 1 x Stabilizer Set 1 x Type-C Cable 1 x 2 in-1 Switch/Keycap Puller |
DOIO KB30-01 QMK VIA Download - Win
DOIO KB30-01 QMK VIA Download - Mac
Important Notice: Please use software within the allowed functionalities of the keyboard and refrain from self-flashing firmware. Any damage or issues arising from such actions will be the sole responsibility of the user.
